Products DetailProduct Parameter

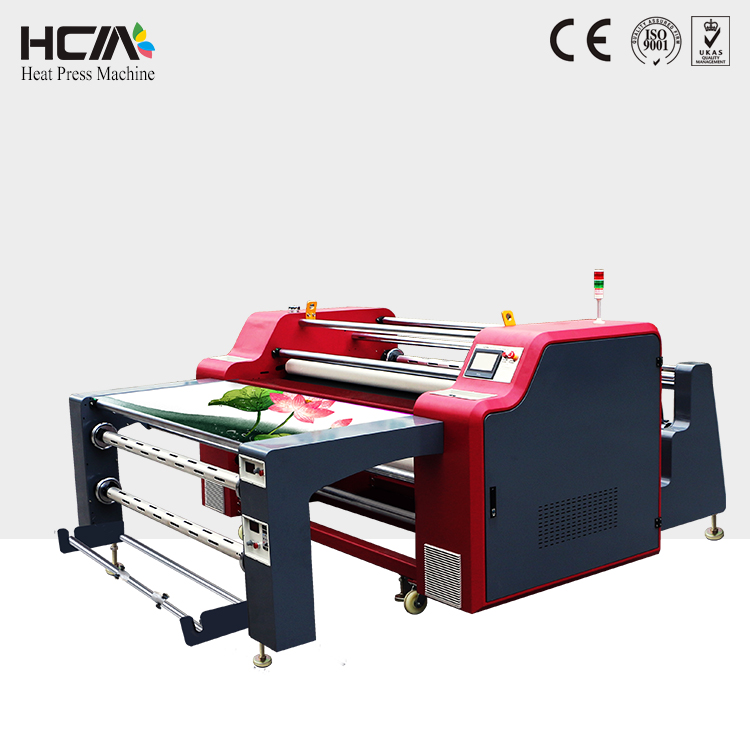

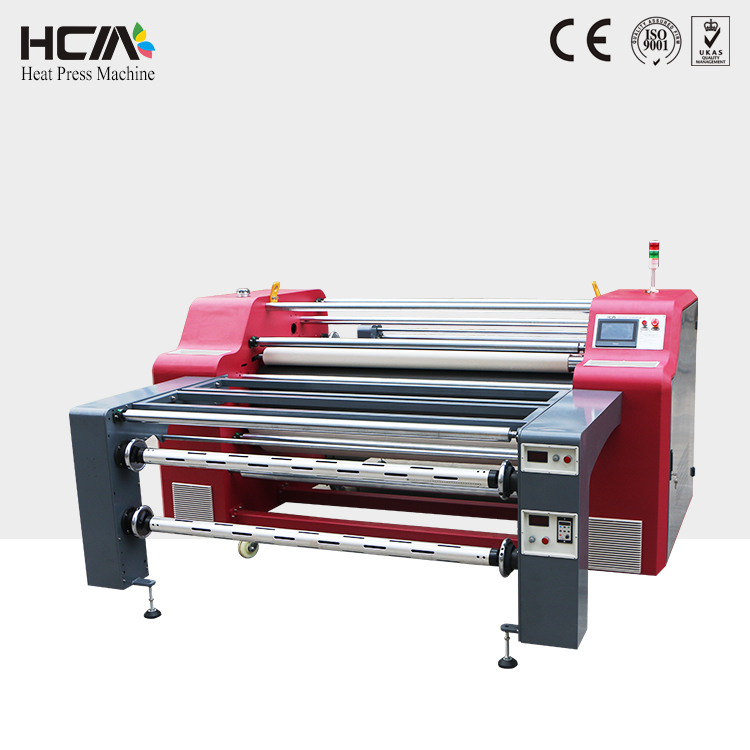

Product Parameter of 2017 HCM full automatic roll heat press machine for beding
Model HCM-F4217T Diameter of oil drum 420 mm Width of diameter 1900 mm Voltage 220V/380V | Power 19KW Printing speed 100-140 m/h Temp.Range 0-240℃ Machine size (L*W*H) 3.4*2.84*1.7 m |
Product feature
Product feature of 2017 HCM full automatic roll heat press machine for beding
1.Automatically adjust the blanket off function
2.Use magnetic powder brake ,distinguish between the traditional control transfer paper tension
3.Automatic control tension of blanket
4.Sustainable suddenly loses power, the machine can continune running 1 to 2 hours
5.PLC control ,automatic shut down and starting up machine
6.Roller surface with Teflon coat,high hardness,wear resistant,anti-sticker.
7.Digital temperature and speed hardness.
8.Oil heating,temperature uniformity no deviations of color.
9.Using imported heating pipes,heat evenly,durable;imported blankets which is not easy to deviate.
10.The blanket is detachable,and not easy to burn; with belts putting device for installing and fixing the belts.
11.Without smoke and abnormal odor during working.
Application fields
2017 HCM full automatic roll heat press machine for beding can be used for both sheet material and roll material heat transfer.It is suitable for sublimation transfer large banners,flags,t-shirt,non-woven fabrics,apparel fabrics,towels,blankets mouse pads and other products in the piece,especially the continuous transfer of the cloth,Capable of continuous printing speed to meet the needs of large volume printing of customers .
