Product Parameter

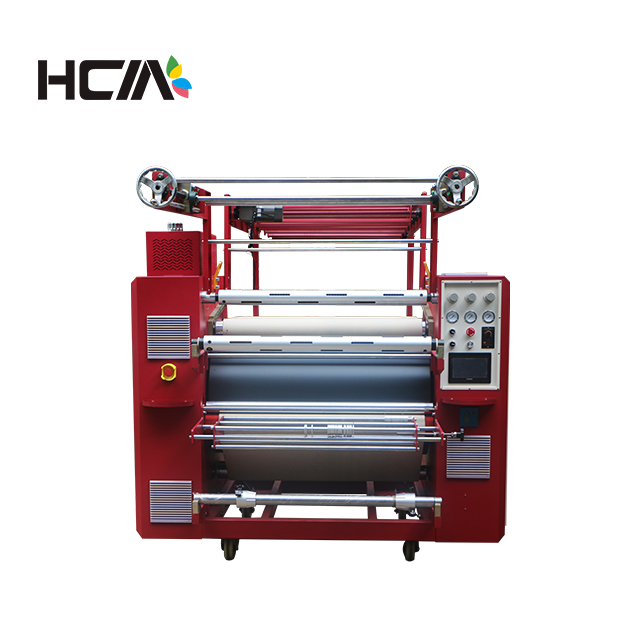

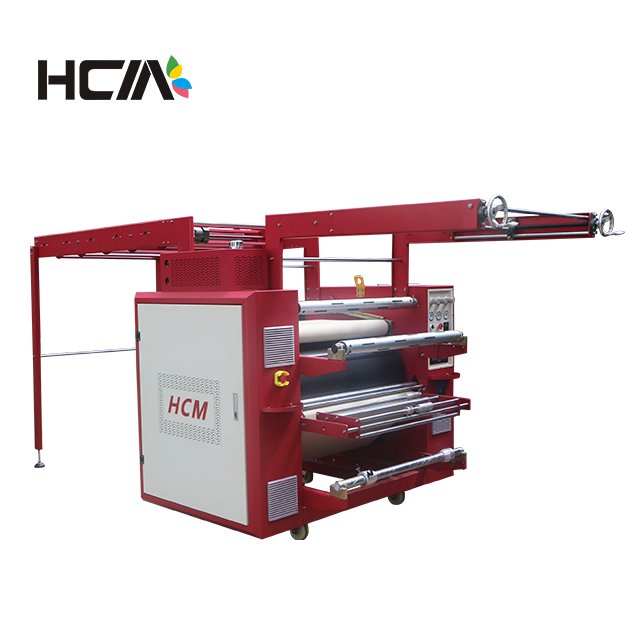

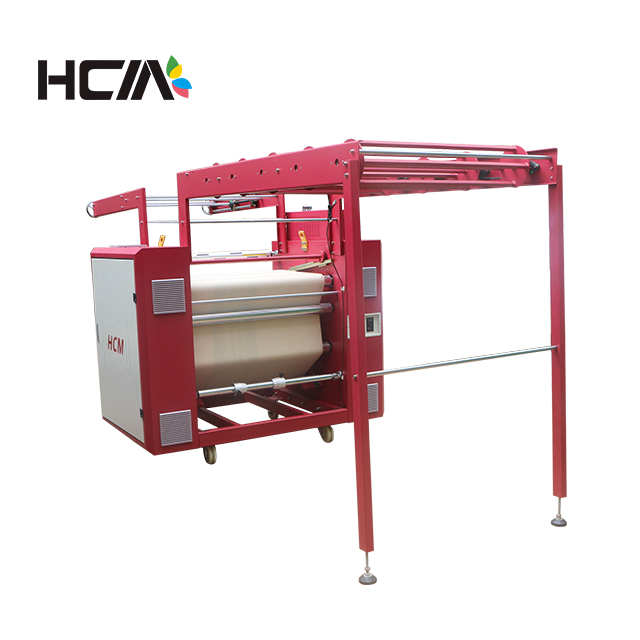

Product Parameter of HCM badges ribbon roller heat transfer press machines
Model HCM-R609 Diameter of oil drum 600 mm Width of diameter 1100 mm Voltage 220V/380V | Power 20.5 KW Max Printing speed 8 m/min Temp.Range 0-240℃ Machine size (L*W*H) 3.9*1.84*1.89 m |
Product Feature:
1. Roller surface with Teflon coat, high hardness,wear resistant,anti-sticking
2. Digital temperature and speed hardness,wear resistant,anti-sticking
3. Oil heating,temperature uniformity (±1-2°C) no deviations of color.
4. Using imported heating pipes,heat evenly,durable;imported blankets which is not easy to deviate.
5. The blanket is detachable,and not easy to burn;with belts putting device for installing and fixing the belts.
6. Without smoke and abnormal odour during working.
1.control panel 2. belts fix 3.blanket 4. roller
Printing process
Use the computer to devise the designed pattern,print it on the specific transfer paper through digital printer by using sublimated ink,and then become transfer printing paper.
Let the transfer paper which has design cling to the lanyard and feed together into the roller lanyard heat printing machine.
Through high temperature and high pressure,sublimation ink on the transfer paper will transfer tolanyard by pneumatolysis,printing is completed and tailor the printed fabric to become lanyards.
Application Fields

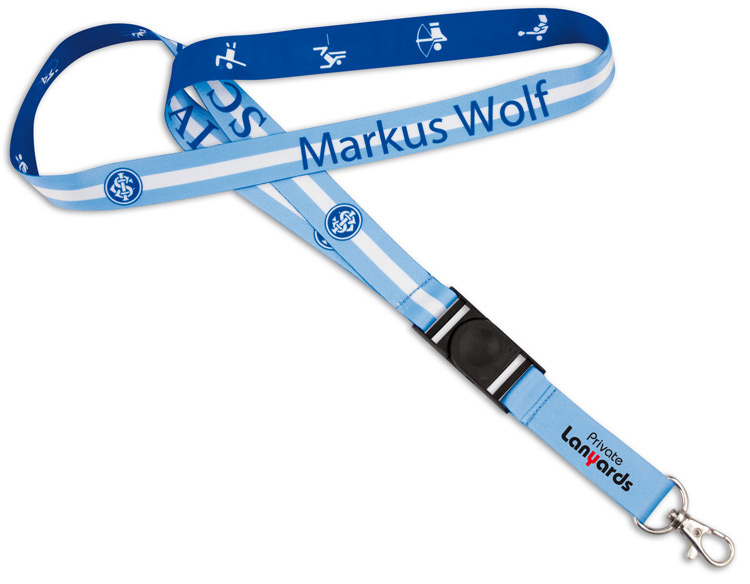

HCM badges ribbon roller heat transfer press machines is suitable for heat press printing of both roll materials and sheet materials as well as sublimation transfer of lanyards,ribbons,belts,webbings,laces,zippers,strap,dog collars, dog harness shoes belt, pet belt,bundling belt, shoulder strap,etc. Beyond that,it particularly works well on continuous transfer of lanyards, which can meet the customers' needs of mass productuon.
