Products DetailPRODUCT PARAMETER

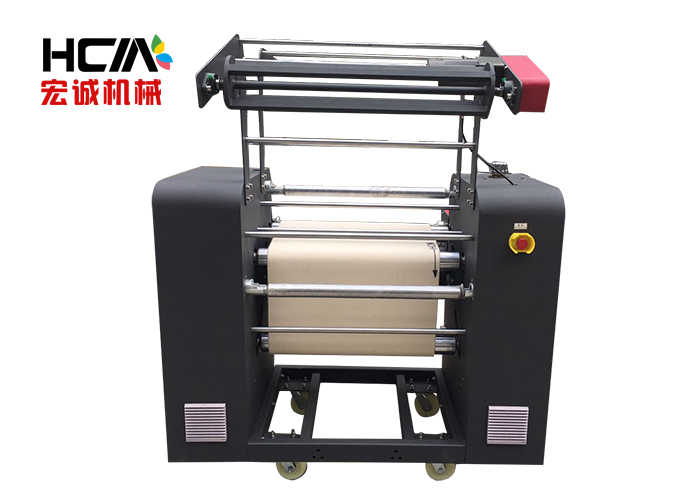

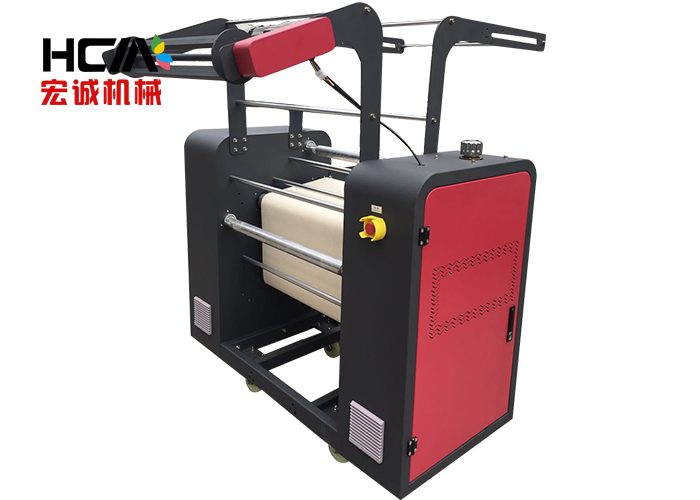

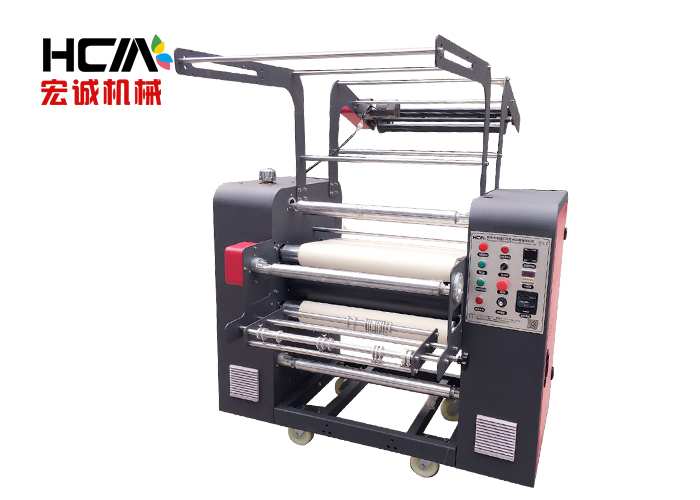

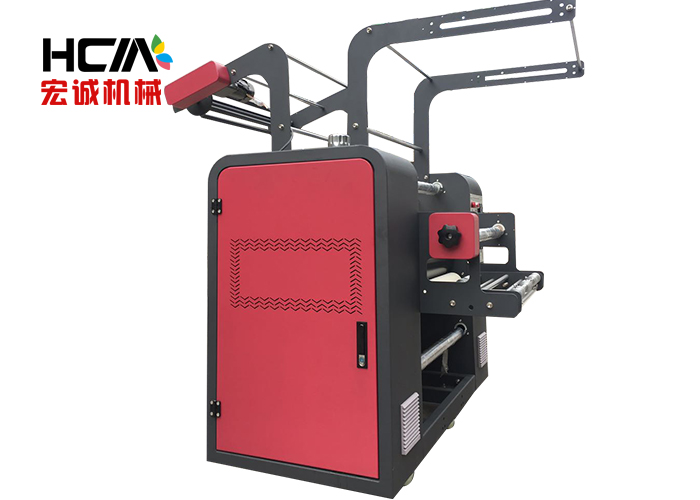

HCM roller lanyard ribbon heat printing machine
Model HCM-R609 Diameter of oil drum 420 mm Width of diameter 1100 mm Voltage 220V/380V | Power 20.5KW Printing speed 1-8 m/min Temp.Range 0-240℃ Machine size (L*W*H) 3.91*1.84*1.89 m |
Product Feature
The ribbon id feed into the machine from the bottom side of the machine,which is convenient for operation ;the printed ribbon is collected at back of the machine with cooling device.
The main roller of HCM roller heat printing machine lanyard ribbon is precise vertical finishing processing,compared with the traditional horizontal finishing,it can reduce earth gravity,so that the roller is not easy to deformation and better keep level with the whole machine.Also with a long life time.And the roller is double-deck ,which is better for heating and the temperature is evener.
The oil drum adopt temperature cycling system which makes the surface temperature of the drum is even and precise .
HCM roller lanyard ribbon heat printing machine with pneumatic extra pressure device,which can give extra pressure to blanket when printing thick fabrics
Application fields

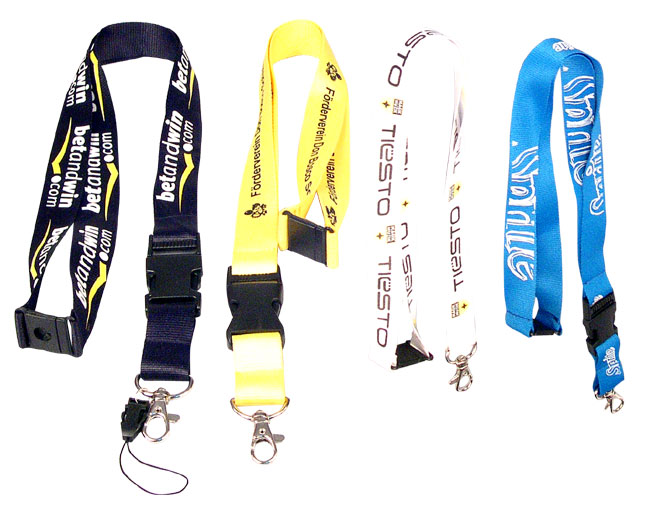

HCM roller lanyard ribbon heat printing machine is mainly used for narrow continue printing fabrics like ribbon, belt, lanyard, elastic belt, zipper, shoes belt, pet belt,bundling belt, shoulder strap,etc.
